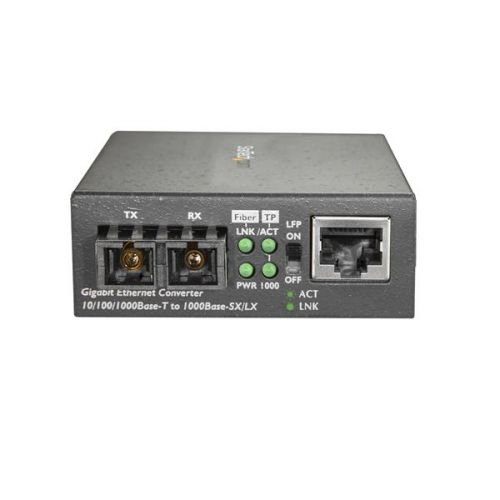

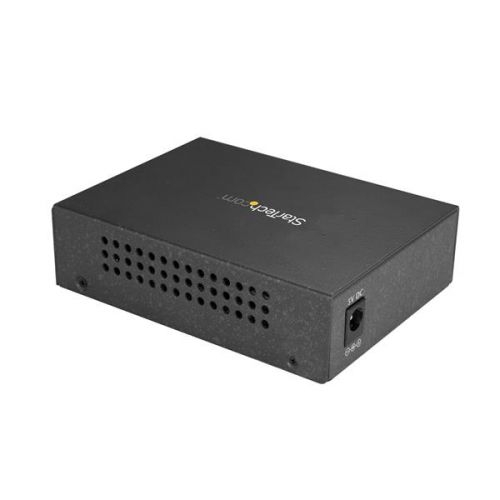

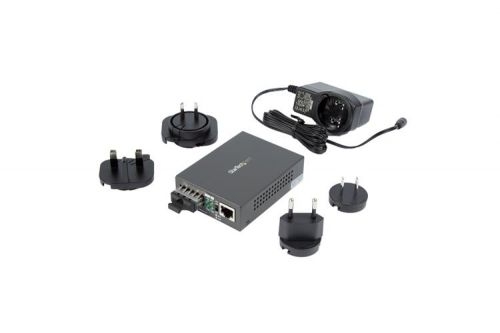

GbE to SC FM Converter 1000BaseLX SM

SKU:MCMGBSCSM10

  • Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fibre on 1000BASE-LX networks
  • Provides a cost-effective Ethernet to fibre/copper to fibre link
  • Supports a maximum distance of 10 km over single mode duplex fibre optic cable (SC connection)
  • Compact design and wall mountable
  • Non-blocking full wire-speed forwarding rate
  • Provides DIP switch supporting Link Fault Pass-through function
  • LED Indicators for simple Ethernet/fibre network link monitoring
  • 1310 nm wavelength
  • Supports IEEE 802.1q Tag VLAN pass through

  • Product Description

    This fibre media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fibre on 1000BASE-LX networks.
    Extend your GbE network cost-effectively
    The fibre media converter provides a cost-effective way to transparently convert copper to fibre, or fibre to copper, for connecting remote sub-networks to larger fibre-optic networks. Providing both SC fibre and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
    Reliable and scalable network connectivity
    Supporting a maximum single-mode fibre cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
    The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • Additional Information

    ManufacturerStarTech
    FormAdapter
    Warranty2 Years Warranty
    TypeExternal Computer Cables
    BrandStarTech
    Connection1 x RJ-45 Female to 1 x Fiber Optic SC Duplex Female
    Dimensions26x105x70mm
    Weight196g
  • Specification

    Brand

    StarTech

    Manufacturer

    StarTech

    Form

    Adapter

    Type

    External Computer Cables
