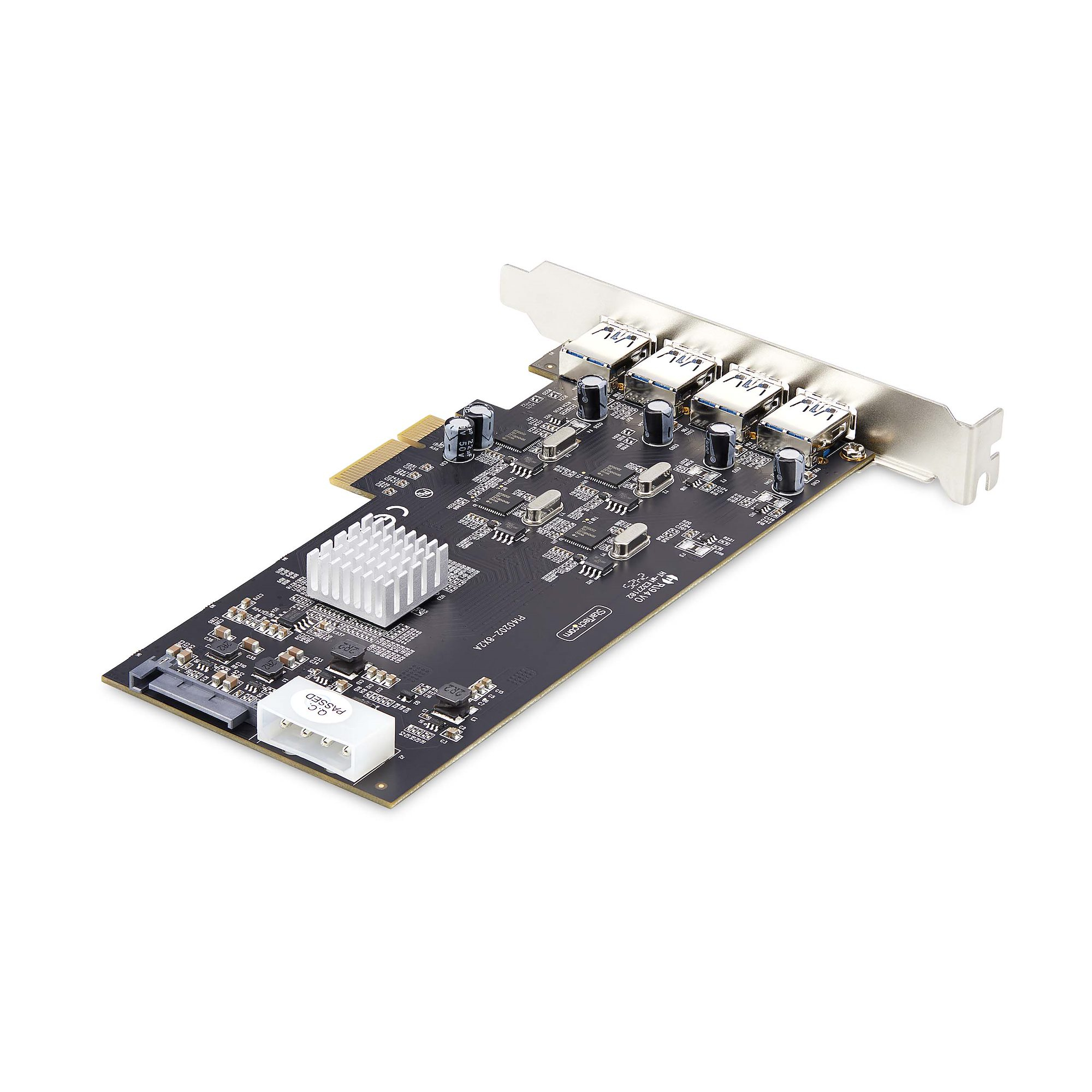

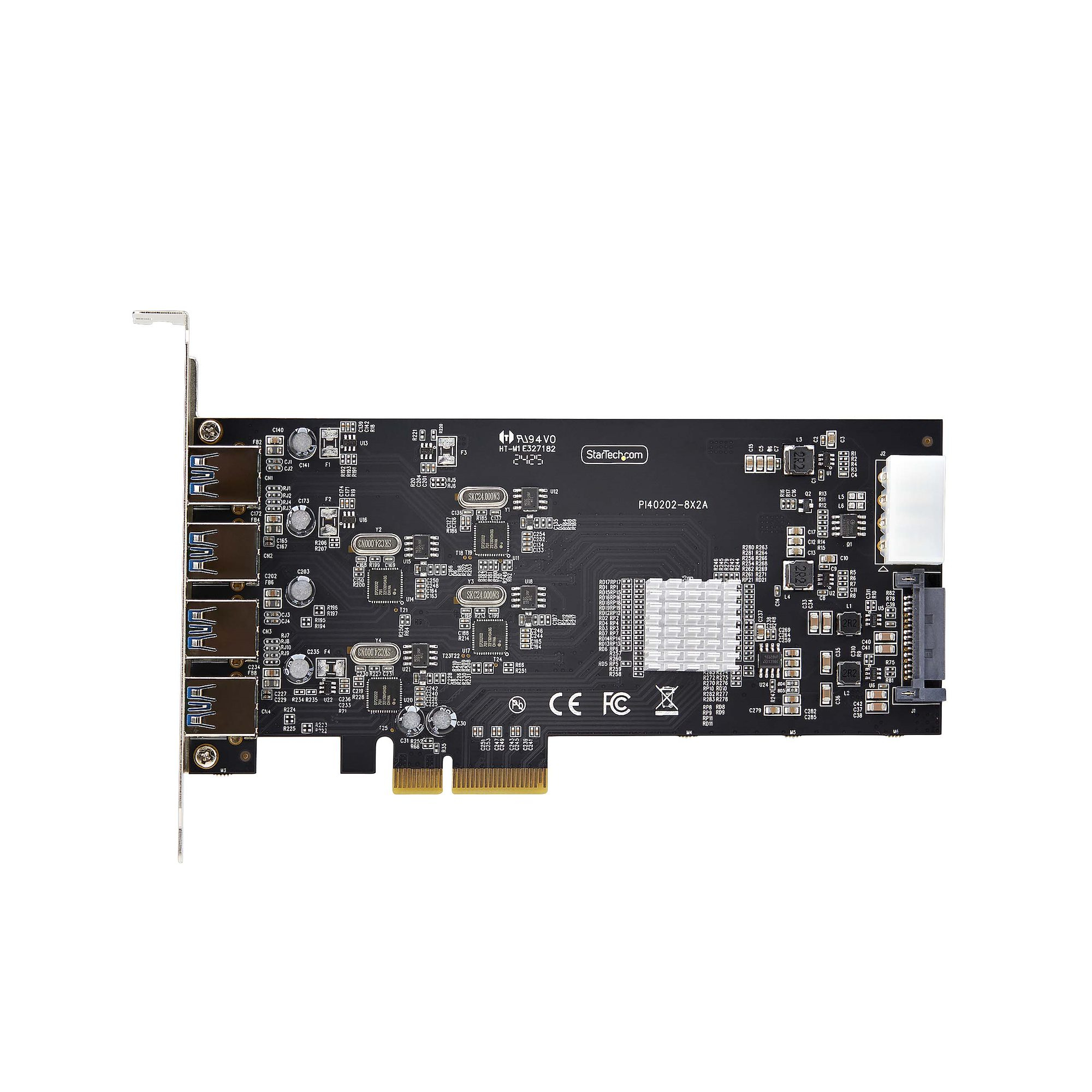

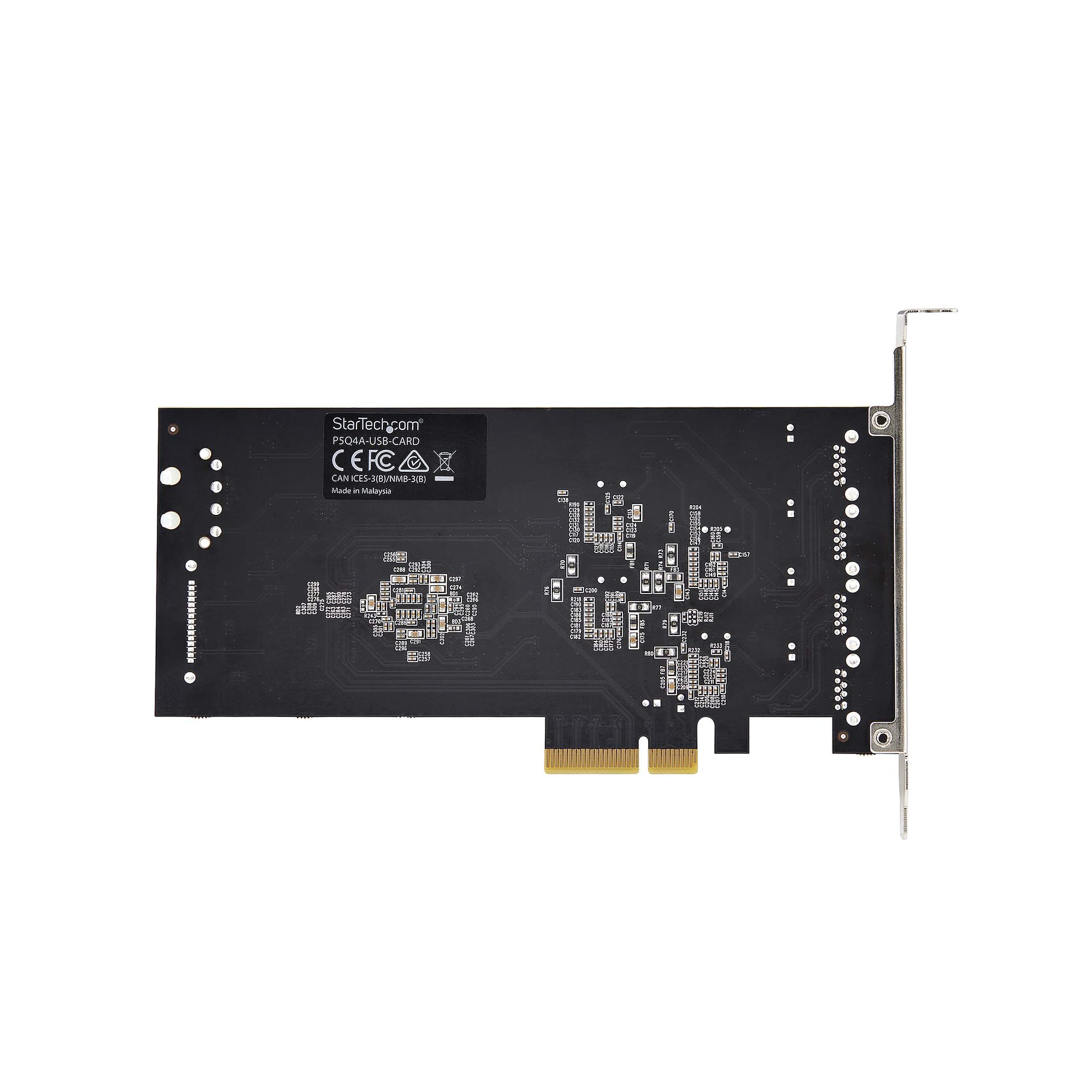

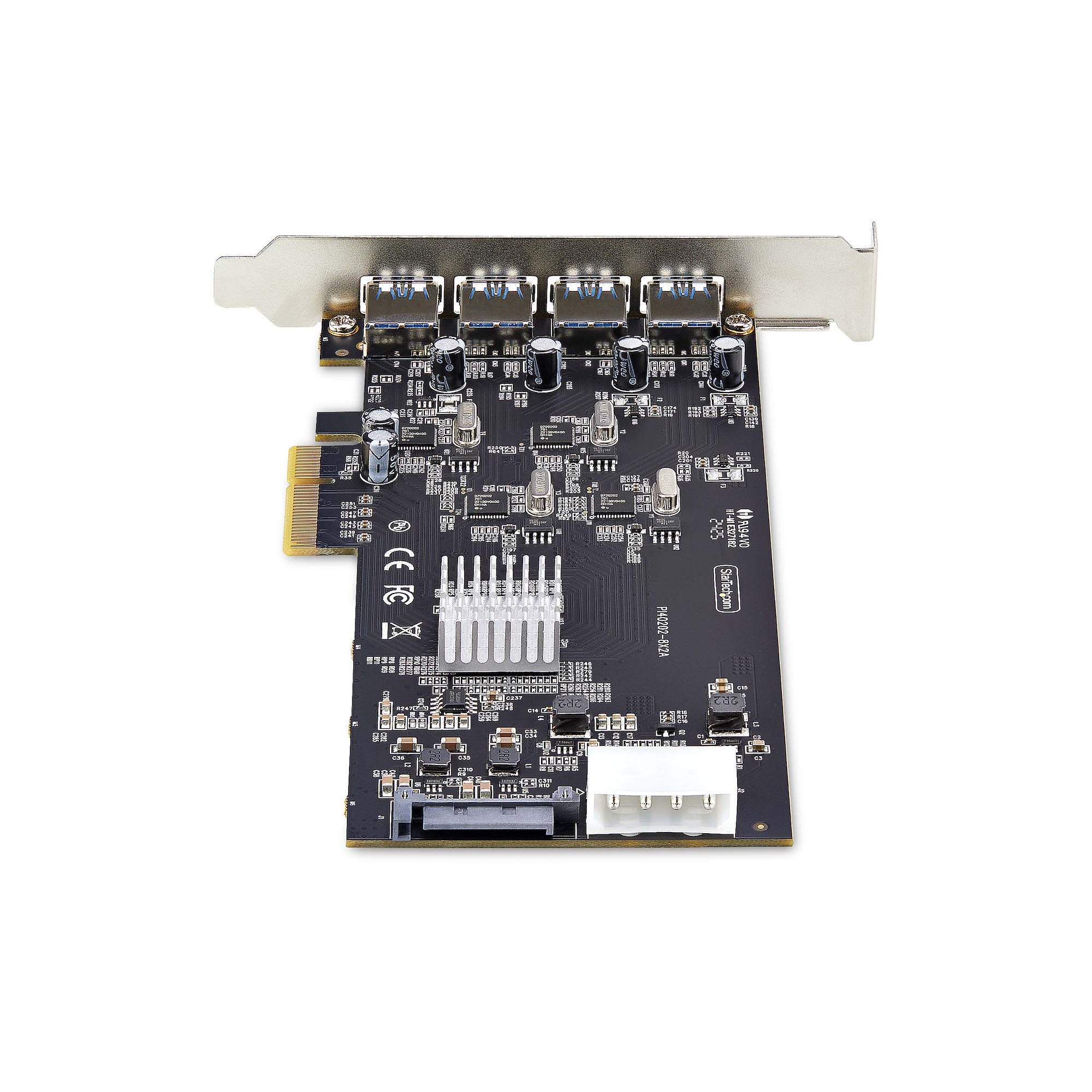

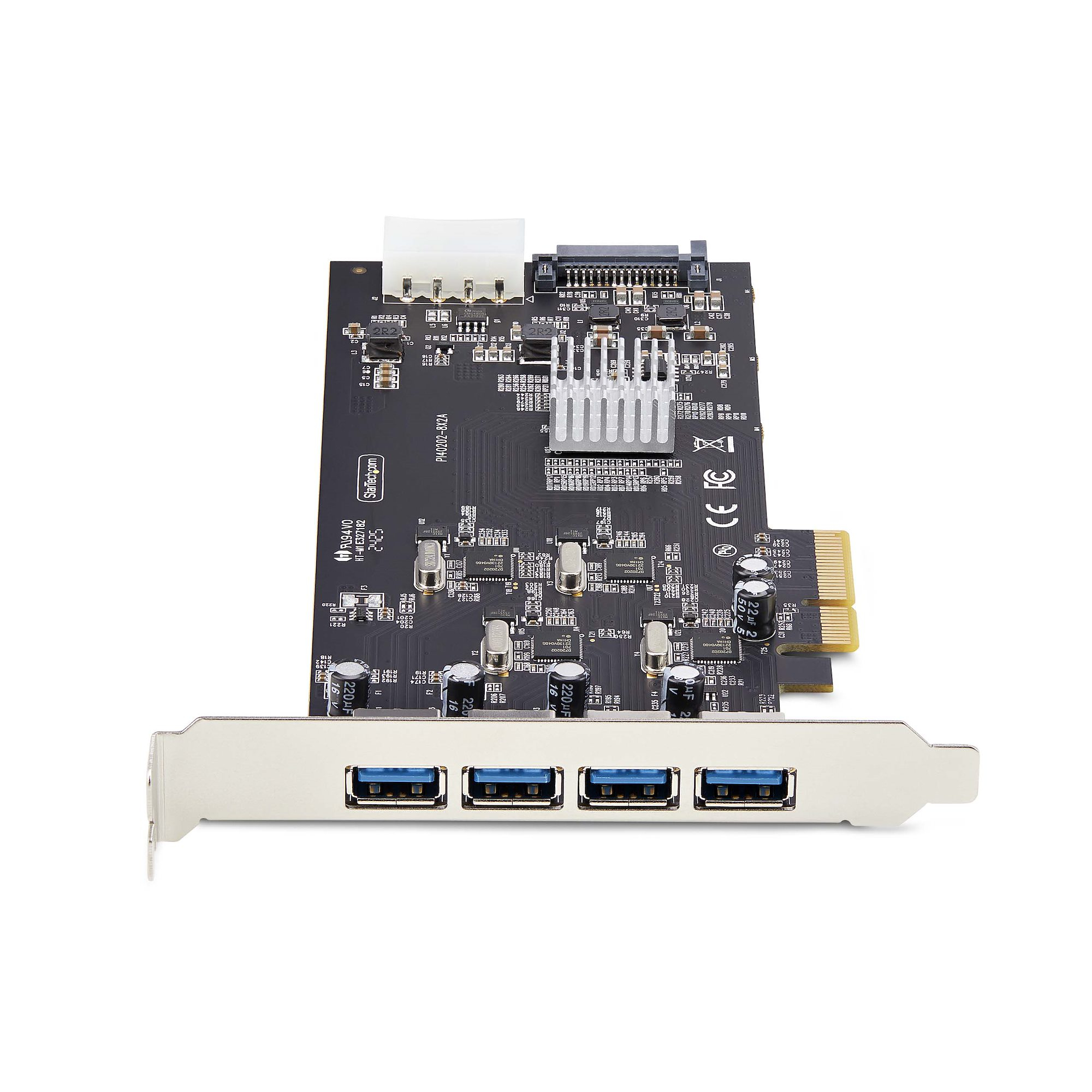

StarTech.com 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Expansion Card with 4x Independent USB Controllers, 4x USB-A Ports, Windows/macOS/Linux
SKU:P5Q4A-USB-CARD
Add four 5Gbps USB Type-A ports through via PCI Express

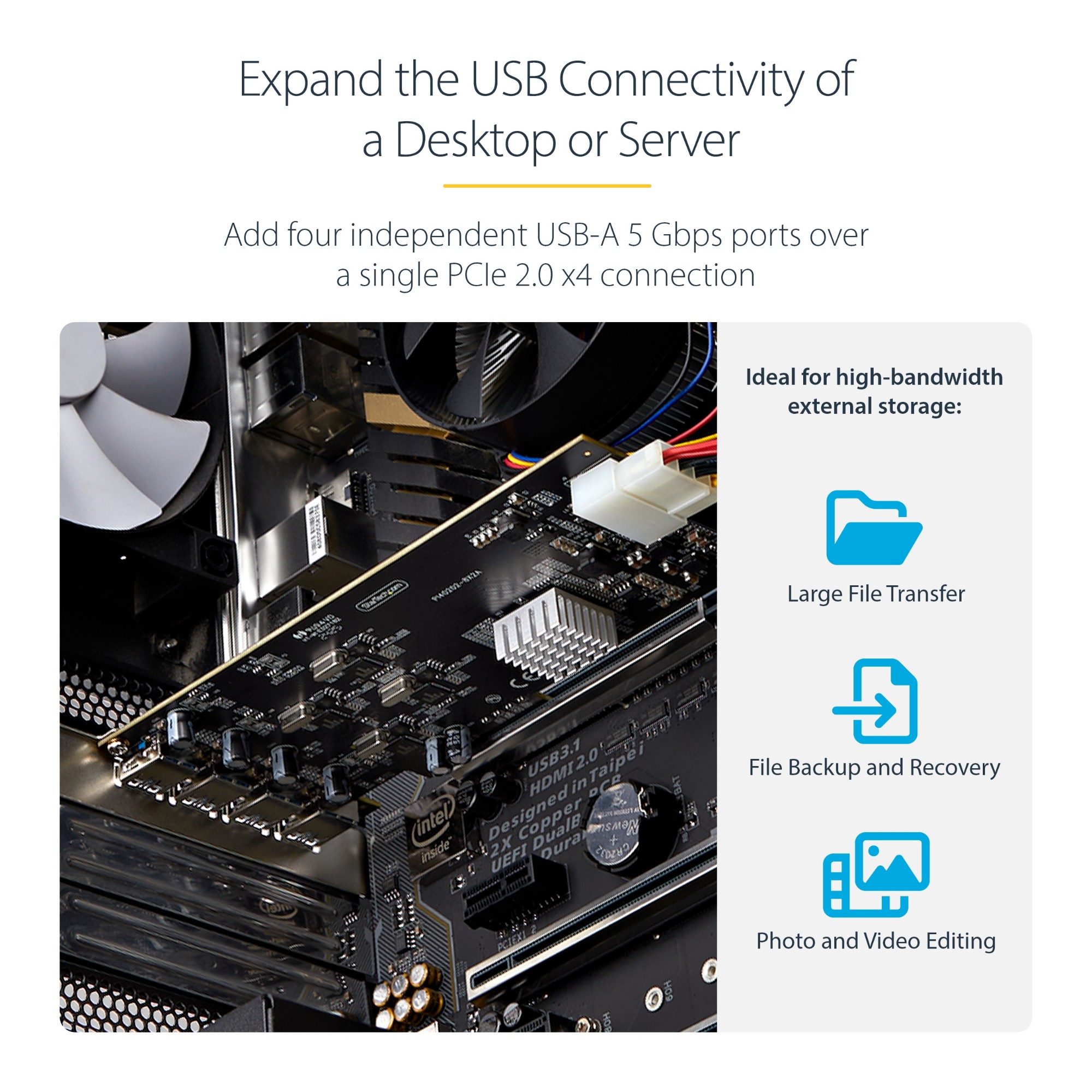

Upgrade or expand the USB connectivity of a desktop computer or server by adding four independent USB Type-A 5Gbps ports over a single PCI Express 2.0 x4 connection.

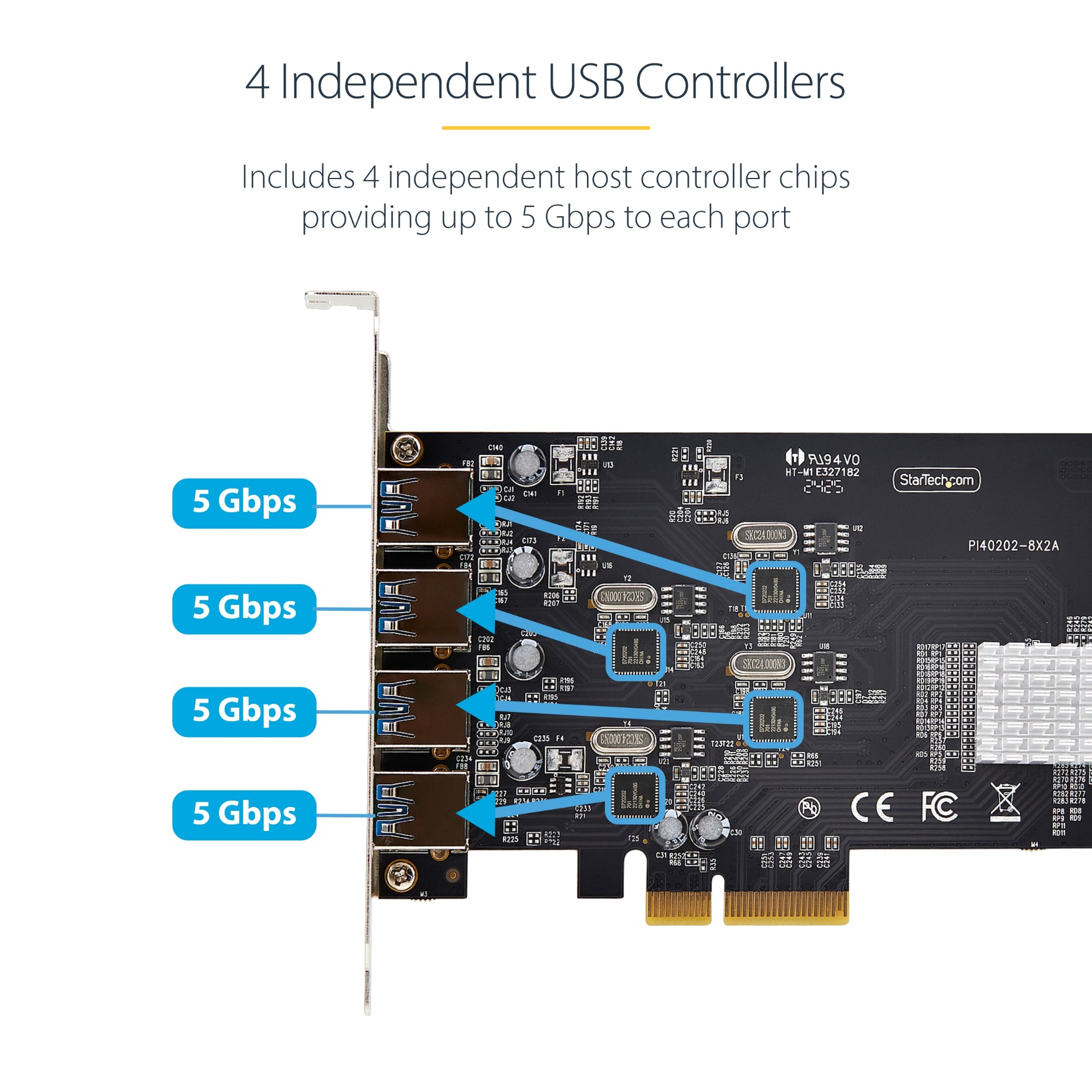

Dedicated USB 5Gbps Per Port
When multiple devices are connected, traditional single-bus USB 3.2 Gen 1 cards share the maximum bandwidth across all ports. By employing four host controller chipsets, each port operates on its own independent channel, providing up to 5Gbps to each USB port, reducing performance bottlenecks and effectively quadrupling the total available bandwidth to 20Gbps.

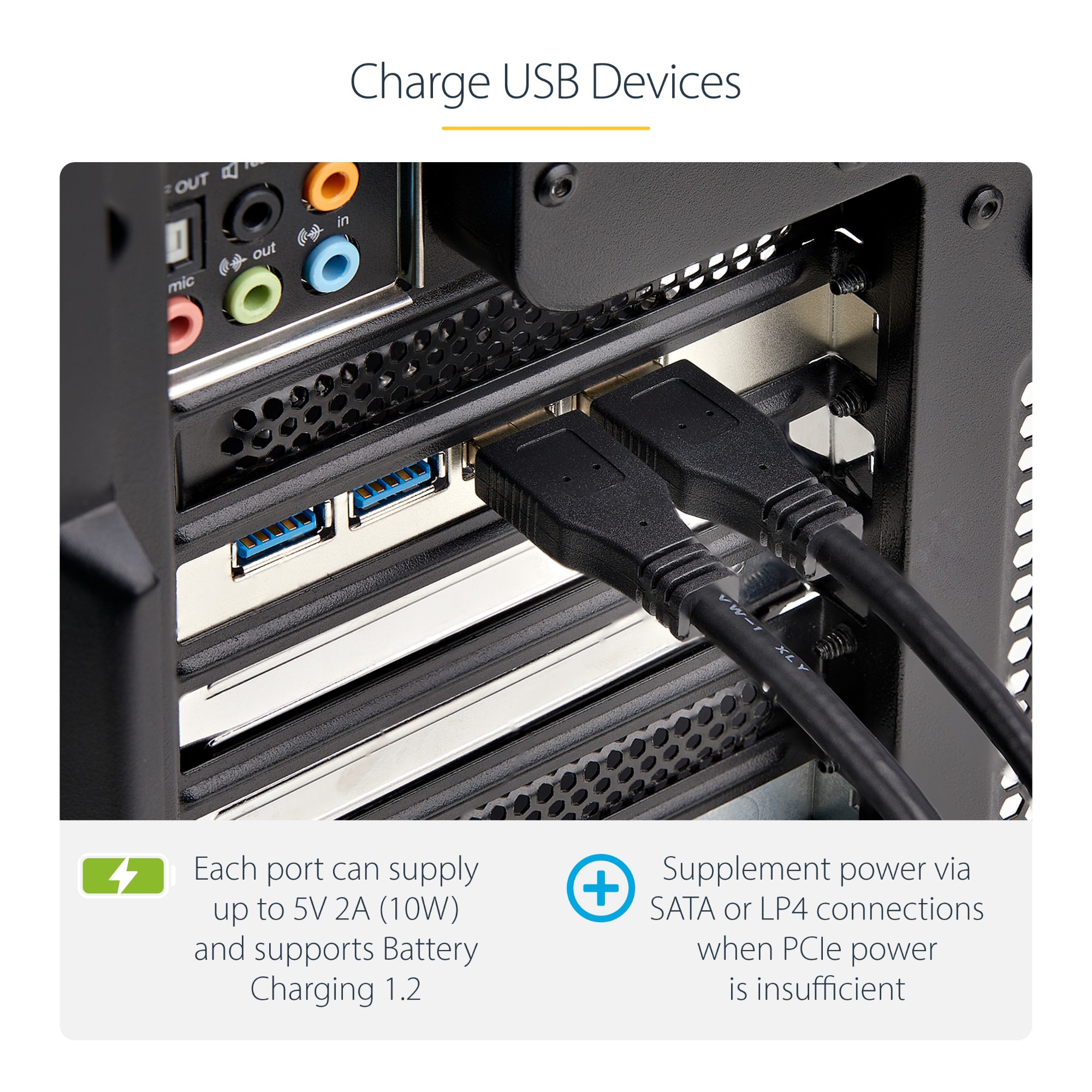

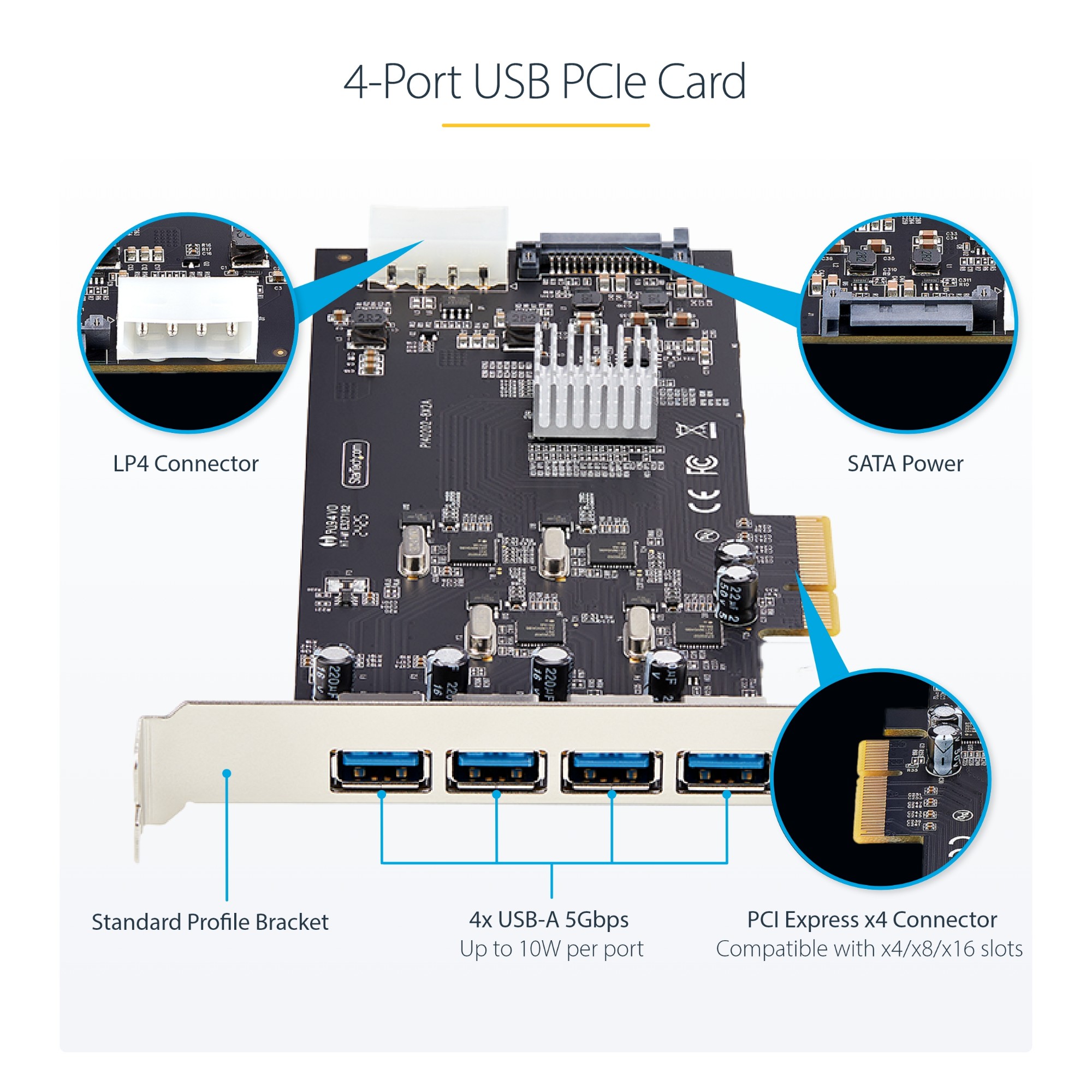

Charge USB Devices
This USB PCIe expansion card can receive supplemental power through SATA or LP4 connectors. It supports the Battery Charging 1.2 (5V 1.5A) specification and provides up to 5V 2A (10W) on the USB Type-A ports when the bus power from the motherboard is insufficient.

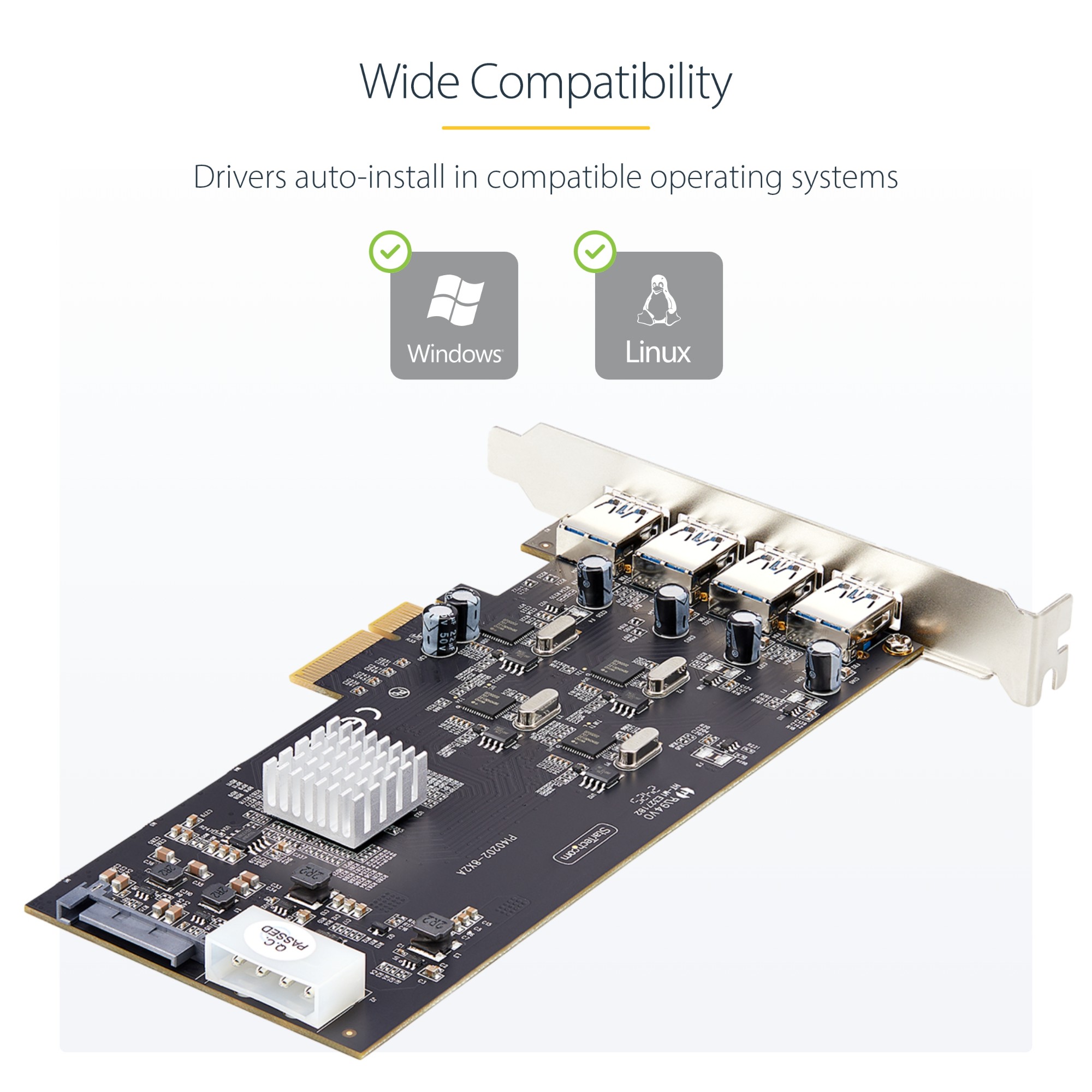

Compatibility

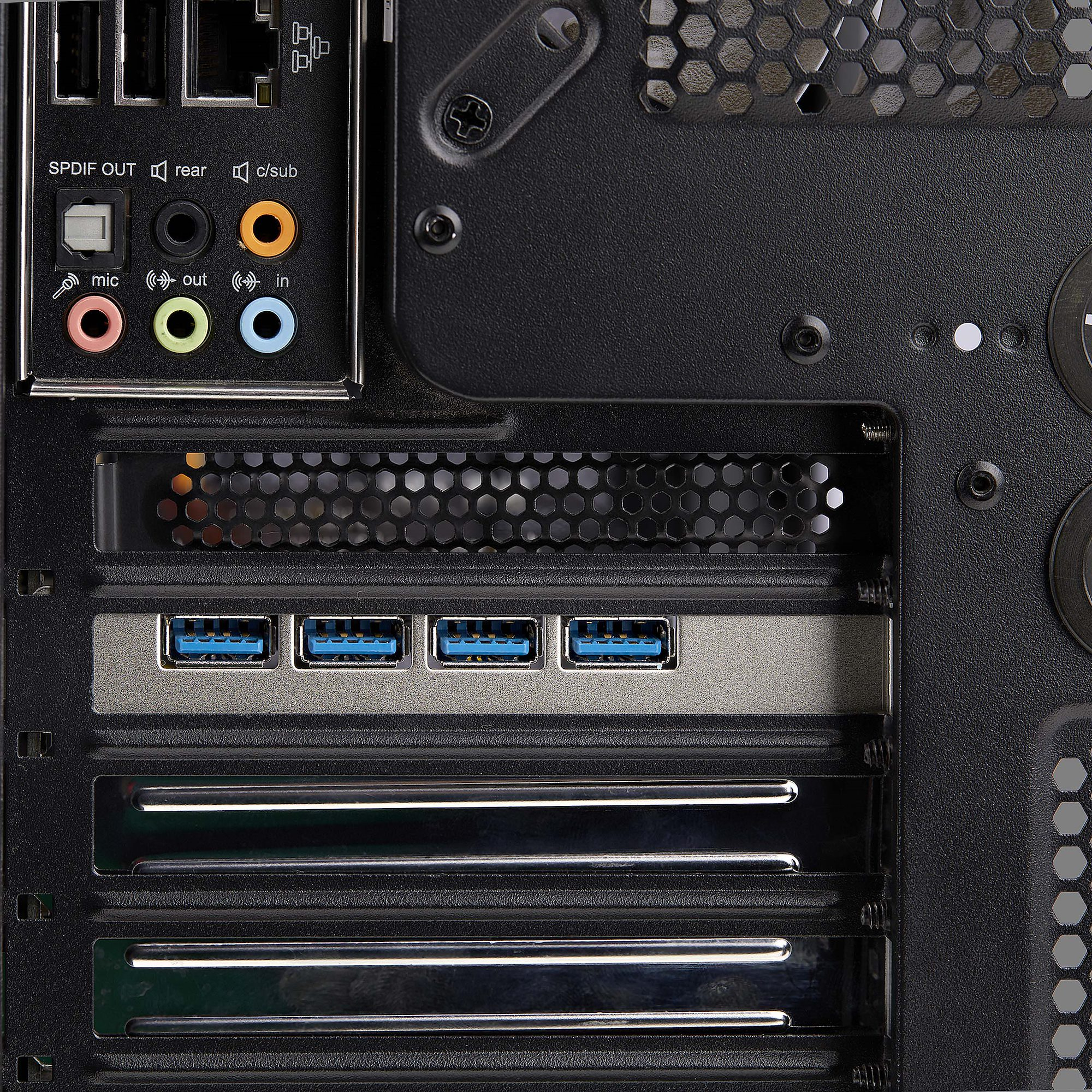

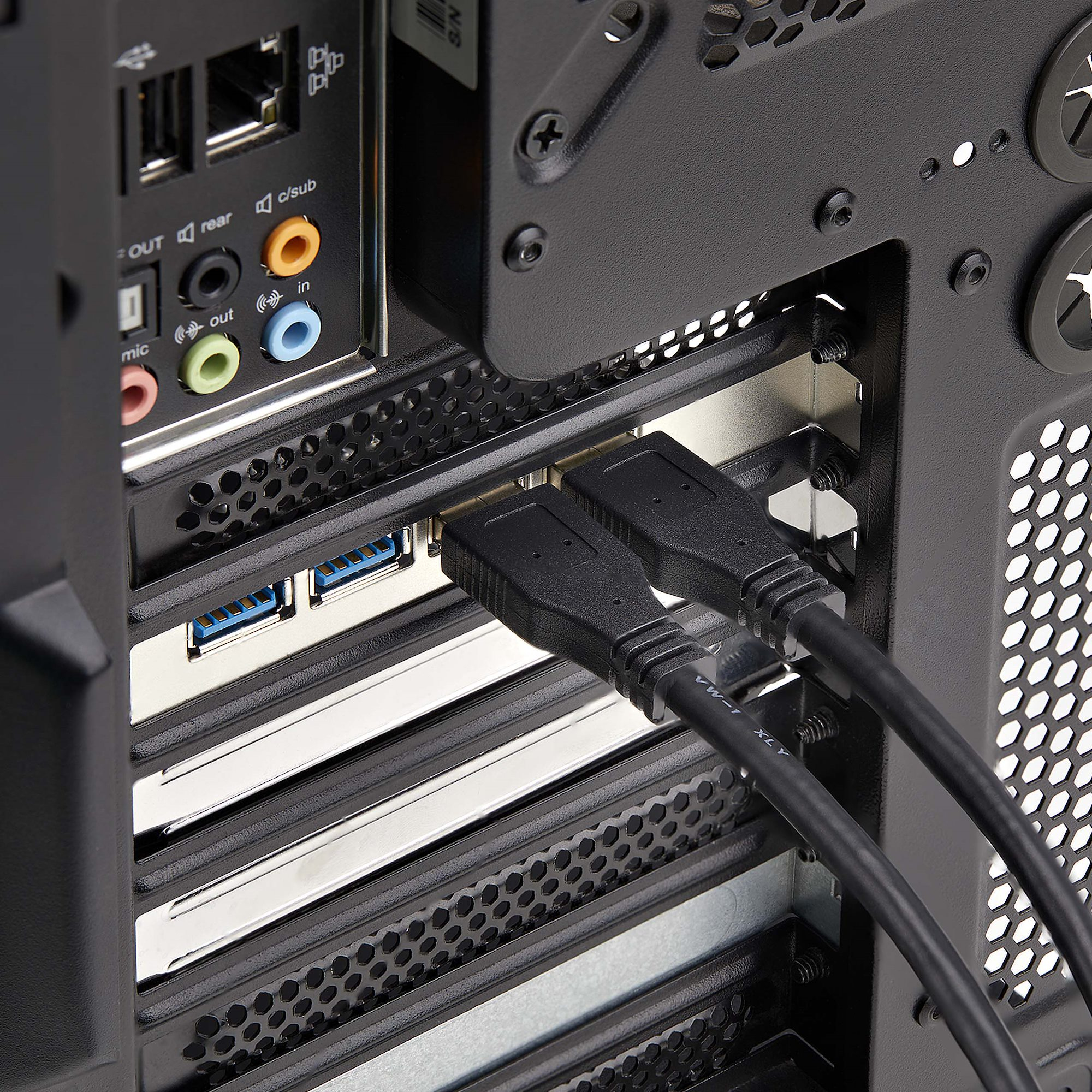

The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. The expansion card supports hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Horizontal USB ports enhance compatibility with different computer cases, reduce the risk of port clearance issues, and accommodate a wider range of USB devices and cables.
The StarTech.com Advantage
-
,Information}{SiteText,1088}
Ports & interfaces Internal Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Output interface USB 3.2 Gen 1 (3.1 Gen 1) Host interface PCIe Expansion card form factor Full-height / Low-profile Expansion card standard PCI 2.0 SATA power connector type SATA 15-pin Technical details Chipset Renesas - UPD720202 x4, Diodes Incorporated - PI7C9X2G608 Data transfer rate (max) 5 Gbit/s Performance UASP support Yes Chipset Renesas - UPD720202 x4, Diodes Incorporated - PI7C9X2G608 Data transfer rate (max) 5 Gbit/s Product colour Black Colour Product colour Black Design Internal Yes Product colour Black Features UASP support Yes Chipset Renesas - UPD720202 x4, Diodes Incorporated - PI7C9X2G608 Data transfer rate (max) 5 Gbit/s Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 90% System requirements Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Linux operating systems supported Yes Server operating systems supported Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 Weight & dimensions Width 120 mm Depth 169 mm Height 19 mm Weight 100 g Package width 144 mm Package depth 207 mm Package height 38 mm Package weight 110 g Packaging data Package width 144 mm Package depth 207 mm Package height 38 mm Package weight 110 g Quick installation guide Yes Logistics data Products per master (outer) case 40 pc(s) Master (outer) case width 440 mm Master (outer) case length 420 mm Master (outer) case height 320 mm Packaging content Quick installation guide Yes Other features Chipset Renesas - UPD720202 x4, Diodes Incorporated - PI7C9X2G608
