Desktop

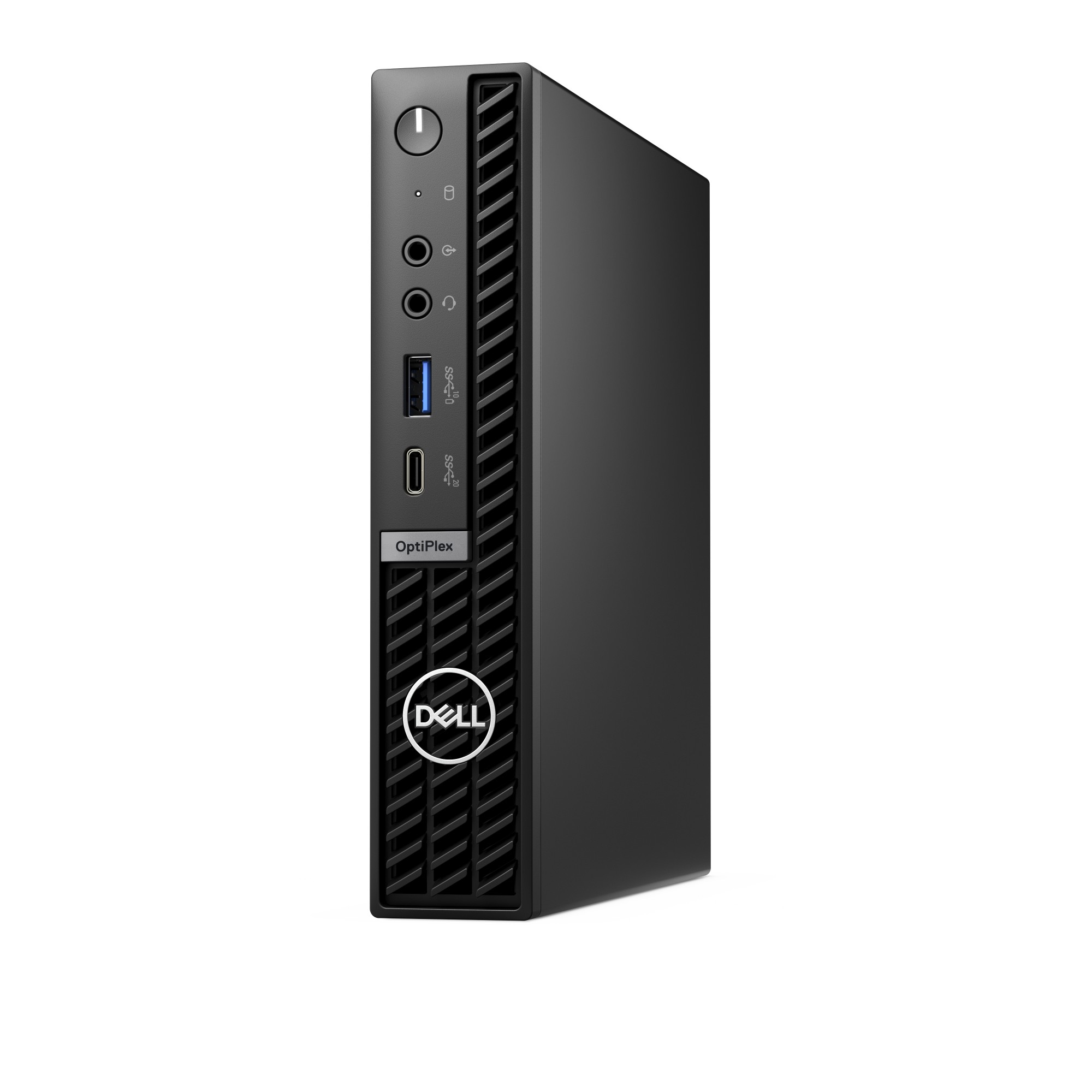

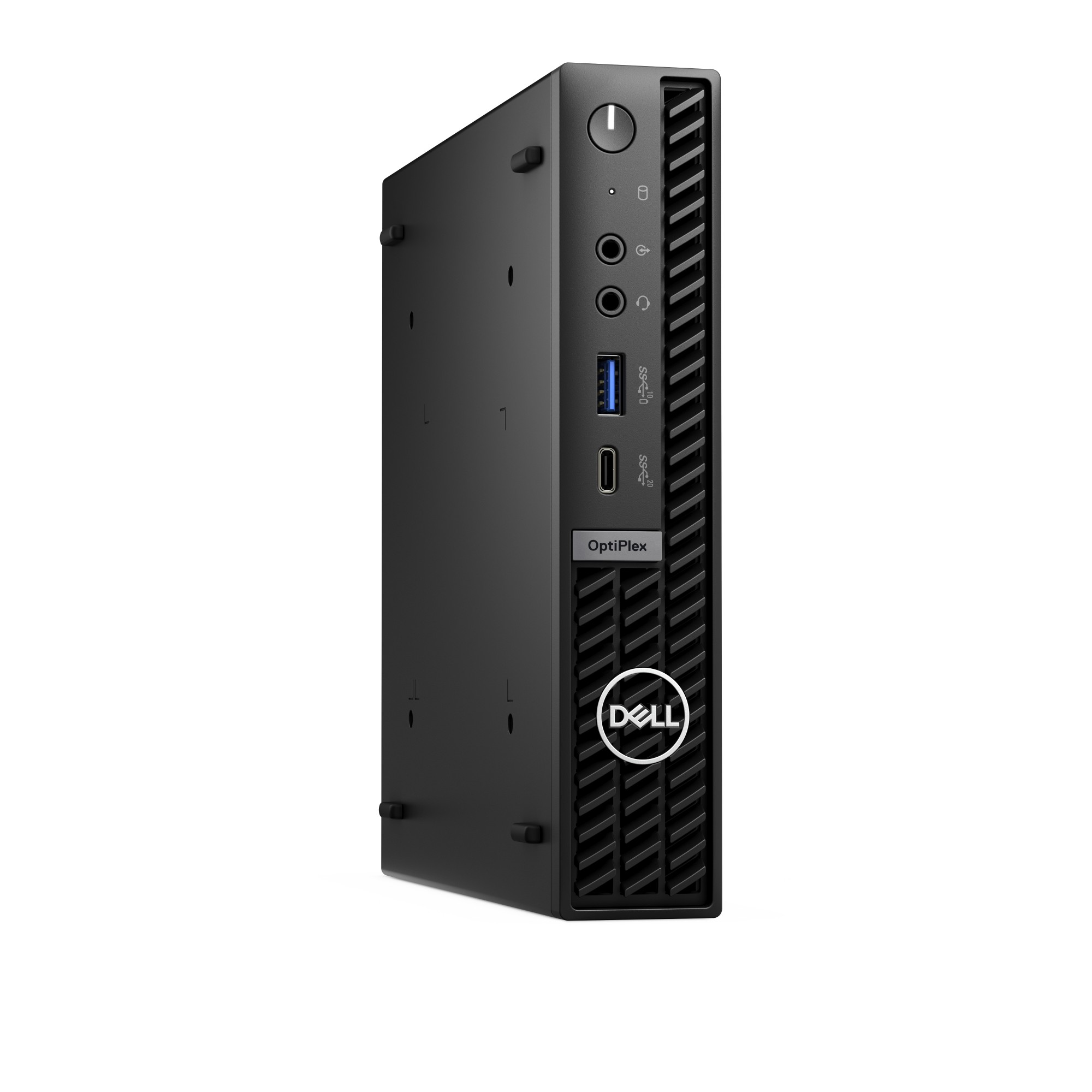

DELL OptiPlex 7020 Plus Intel® Core i5 i5-14500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro MFF Mini PC Black
SKU:R73HR

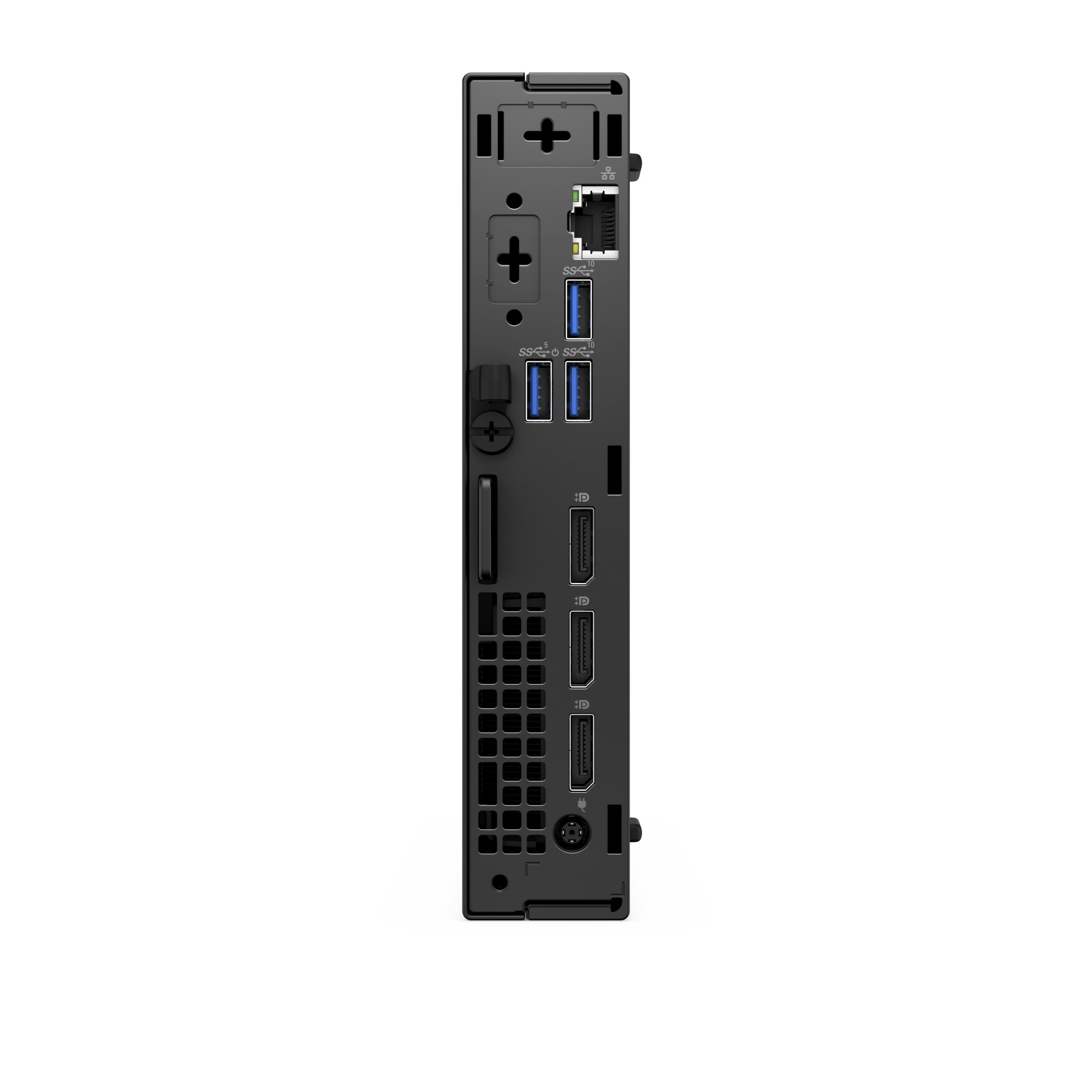

High performance commercial desktop with DDR5 memory, 5 native USBs including 1 USB-C, and 3 native DisplayPorts
-
Specification
Processor Processor generation Intel® Core i5 (14th gen) Processor cache type Smart Cache Processor cache 24 MB Processor model i5-14500 Number of processors installed 1 Processor manufacturer Intel Processor boost frequency 5 GHz Processor threads 20 Processor cores 14 Processor family Intel® Core i5 Number of processors supported 1 Performance cores 6 Efficient cores 8 Performance-core base frequency 2.6 GHz Efficient-core base frequency 1.9 GHz Processor base power 65 W Maximum turbo power 154 W Efficient-core Max Turbo Frequency 3.7 GHz Performance-core Max Turbo Frequency 5 GHz Memory ECC No Memory layout (slots x size) 1 x 16 GB Internal memory 16 GB Maximum internal memory 64 GB Memory slots 2x SO-DIMM Internal memory type DDR5-SDRAM Memory channels Single-channel Storage Storage media SSD Number of storage drives installed 1 RAID support No Optical drive type No SSD interface PCI Express 4.0 SSD capacity 512 GB Number of SSDs installed 1 Compatible memory cards Not supported Total storage capacity 512 GB SSD form factor M.2 Total SSDs capacity 512 GB SSD performance class 35 NVMe Yes M.2 SSD size 2230 (22 x 30 mm) Graphics Discrete graphics card No On-board graphics card family Intel® UHD Graphics On-board graphics card Yes Discrete graphics card model Not available On-board graphics card model Intel UHD Graphics 770 On-board GPU manufacturer Intel Maximum on-board graphics card resolution 7680 x 4320 pixels Optical drive Optical drive type No Network Ethernet LAN Yes Wi-Fi Yes Bluetooth Yes Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) Ethernet LAN data rates 10,100,1000 Mbit/s WLAN controller model Intel Wi-Fi 6E AX211 Top Wi-Fi standard Wi-Fi 6E (802.11ax) Antenna type 2x2 WLAN controller manufacturer Intel Ports & interfaces Combo headphone/mic port Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0 Thunderbolt 3 ports quantity 0 USB 2.0 ports quantity 0 Microphone in Yes Ethernet LAN (RJ-45) ports 1 DisplayPorts quantity 3 DC-in jack Yes PowerShare Yes Number of USB ports with PowerShare support 1 DisplayPort version 1.4a USB 3.2 Gen 2x2 Type-C ports quantity 1 Number of rear USB ports 3 Number of rear audio ports 0 Number of front USB ports 2 Number of front audio ports 2 Technical details Water cooling system No Cable lock slot type Kensington Product type Mini PC Trusted Platform Module (TPM) Yes Product colour Black Chassis type MFF Placement supported Horizontal/Vertical Cable lock slot Yes Motherboard chipset Intel Q670 Sustainability compliance Yes Sustainability certificates TCO, ENERGY STAR, EPEAT Climate + Doesn't contain PVC/BFR Design Water cooling system No Cable lock slot type Kensington Product colour Black Chassis type MFF Placement supported Horizontal/Vertical Cable lock slot Yes Intel® vPro Platform Eligibility Yes Performance Audio chip Realtek ALC3246 Market positioning Business Number of speakers 1 Password protection Yes Product type Mini PC Trusted Platform Module (TPM) Yes Built-in speaker(s) No Motherboard chipset Intel Q670 Trusted Platform Module (TPM) version 2.0 Software Operating system language German, Dutch, English, French, Italian Operating system architecture 64-bit Trial software Activate Your Microsoft 365 For A 30 Day Trial Operating system installed Windows 11 Pro Processor special features Intel® vPro Platform Eligibility Yes Power Power supply input frequency 50/60 Hz Power supply input voltage 100 - 240 V Power supply 180 W Operational conditions Operating altitude -15.2 - 3048 m Storage temperature (T-T) -40 - 65 °C Operating relative humidity (H-H) 20 - 80% Storage relative humidity (H-H) 5 - 95% Operating temperature (T-T) 10 - 35 °C Non-operating altitude -15.2 - 10668 m Operating vibration 0.26 G Non-operating vibration 1.37 G Operating shock 40 G Non-operating shock 105 G Sustainability Sustainability compliance Yes Sustainability certificates TCO, ENERGY STAR, EPEAT Climate + Doesn't contain PVC/BFR Total carbon footprint (kg of CO2e) 96 Weight & dimensions Width 36 mm Depth 178 mm Height 182 mm Packaging content Cables included AC Display included No Input device model Dell Pro Wireless Keyboard and Mouse - KM5221W - UK (QWERTY) - Black Power cable length 1.8 m Carbon footprint Total carbon footprint (kg of CO2e) 96 Total carbon emissions, w/o use phase (kg of CO2e) 65 PAIA version GaBi version 1, 2024 Carbon emissions, energy usage (kg of CO2e) 31 Carbon emissions, manufacturing (kg of CO2e) 62 Carbon emissions, logistics (kg of CO2e) 2 Carbon emissions, end-of-life (kg of CO2e) 1 Other features Number of speakers 1 Trusted Platform Module (TPM) Yes On-board graphics card Yes Processor manufacturer Intel Built-in speaker(s) No
