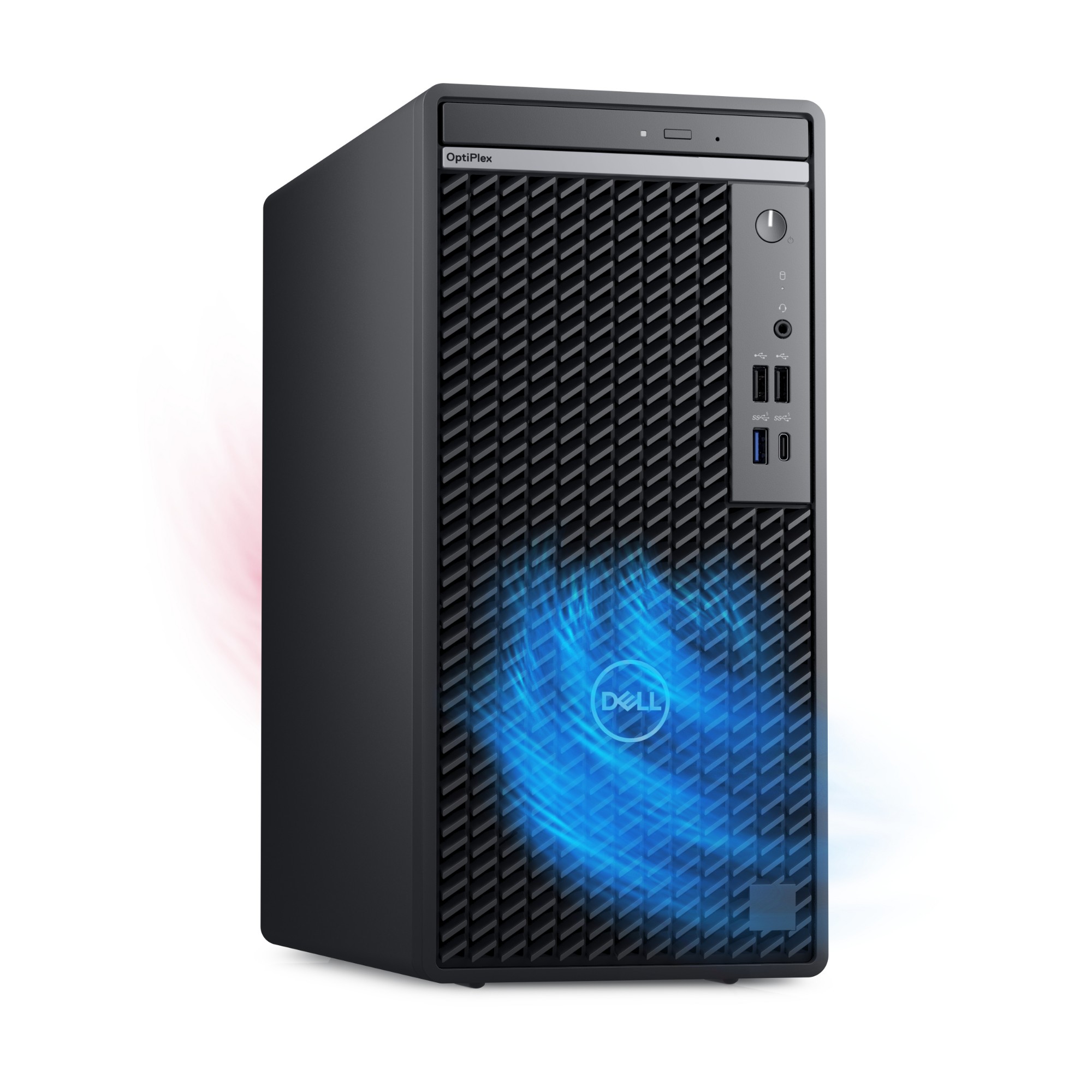

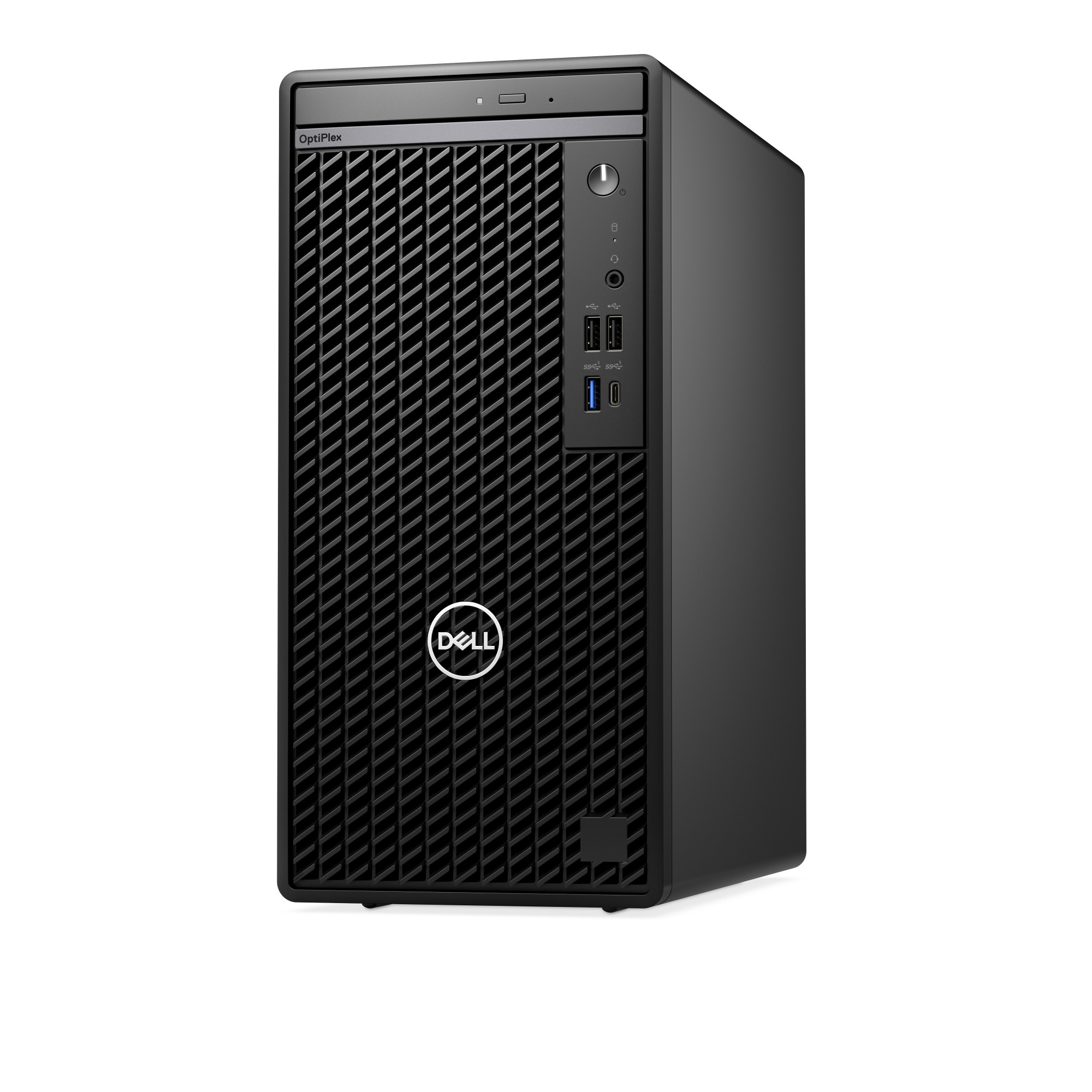

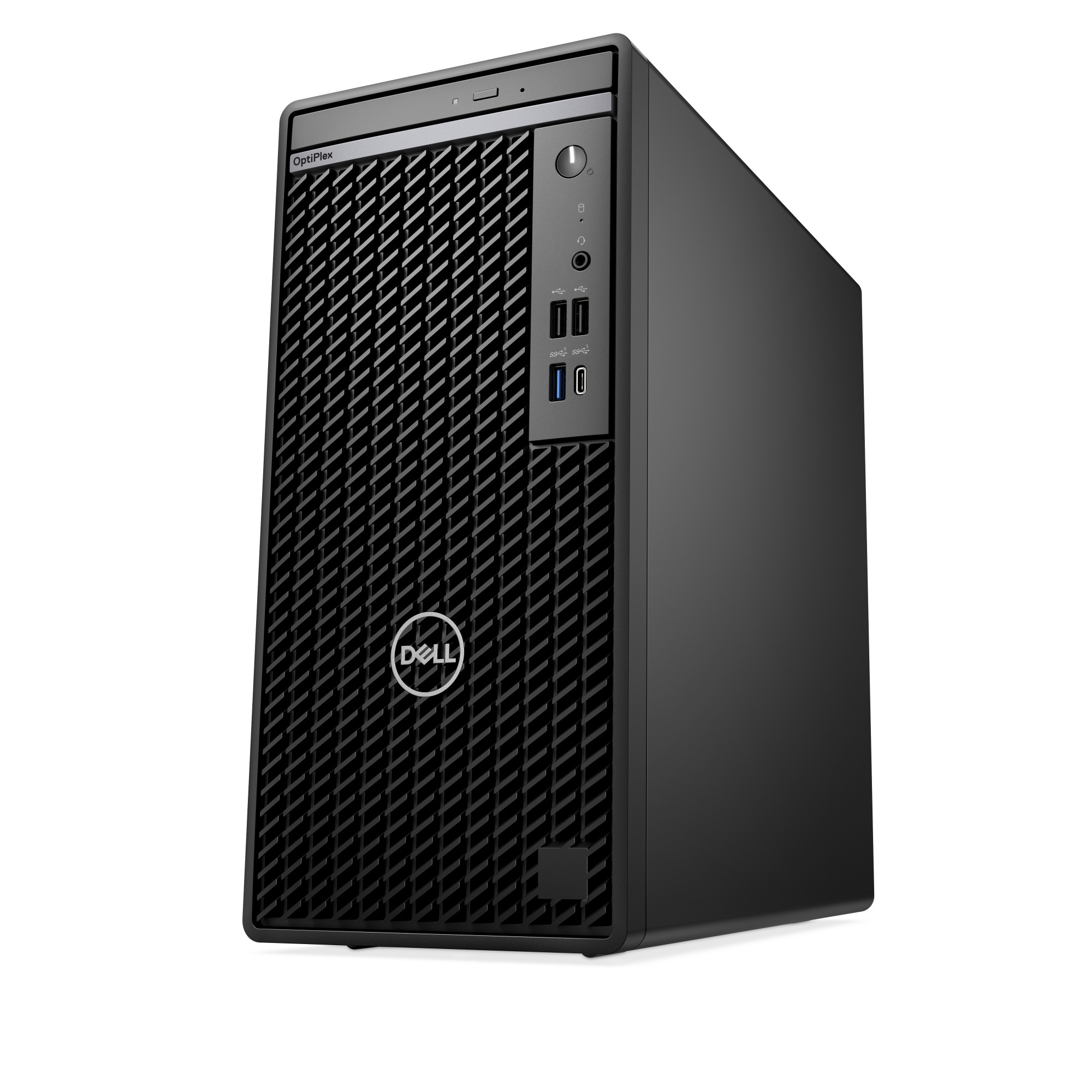

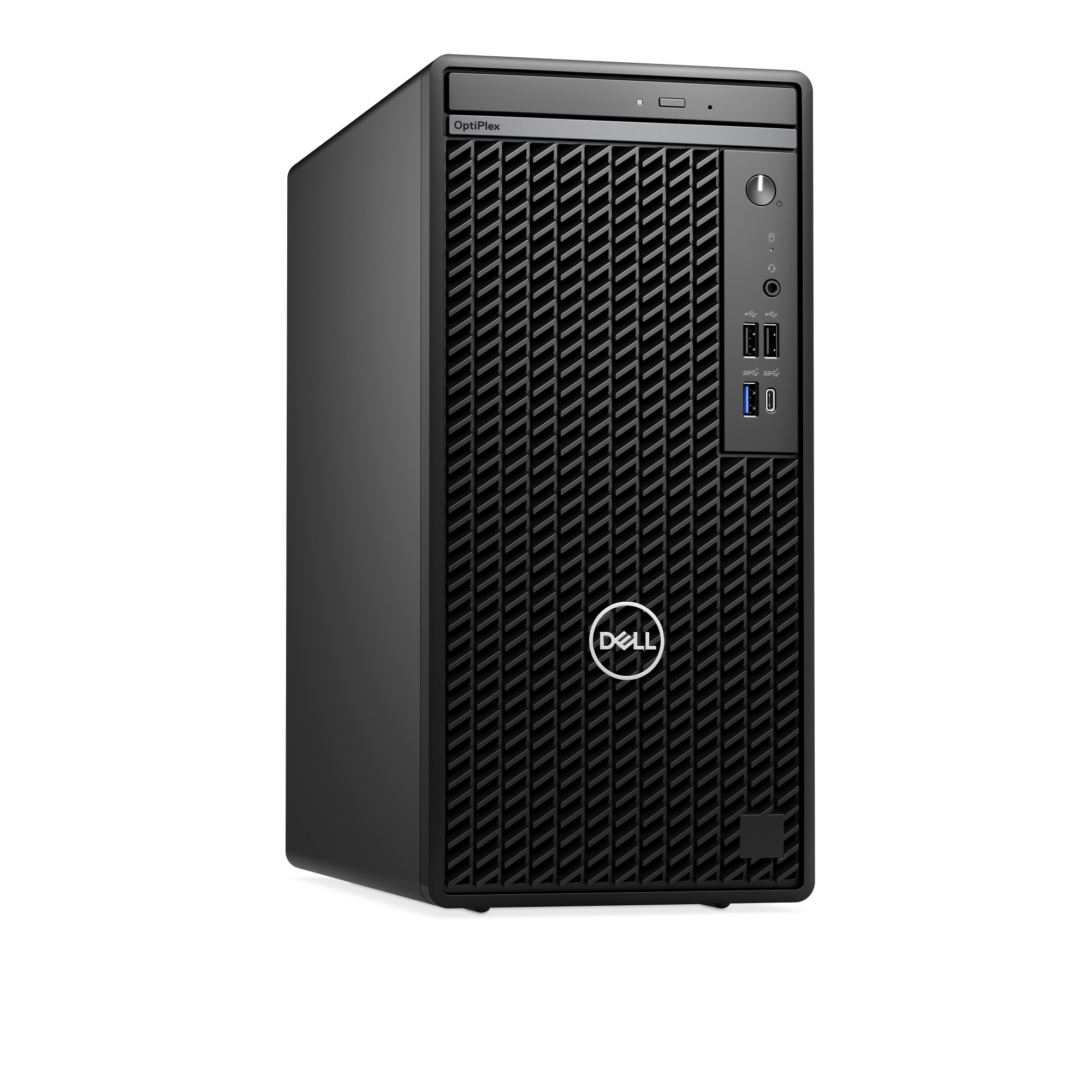

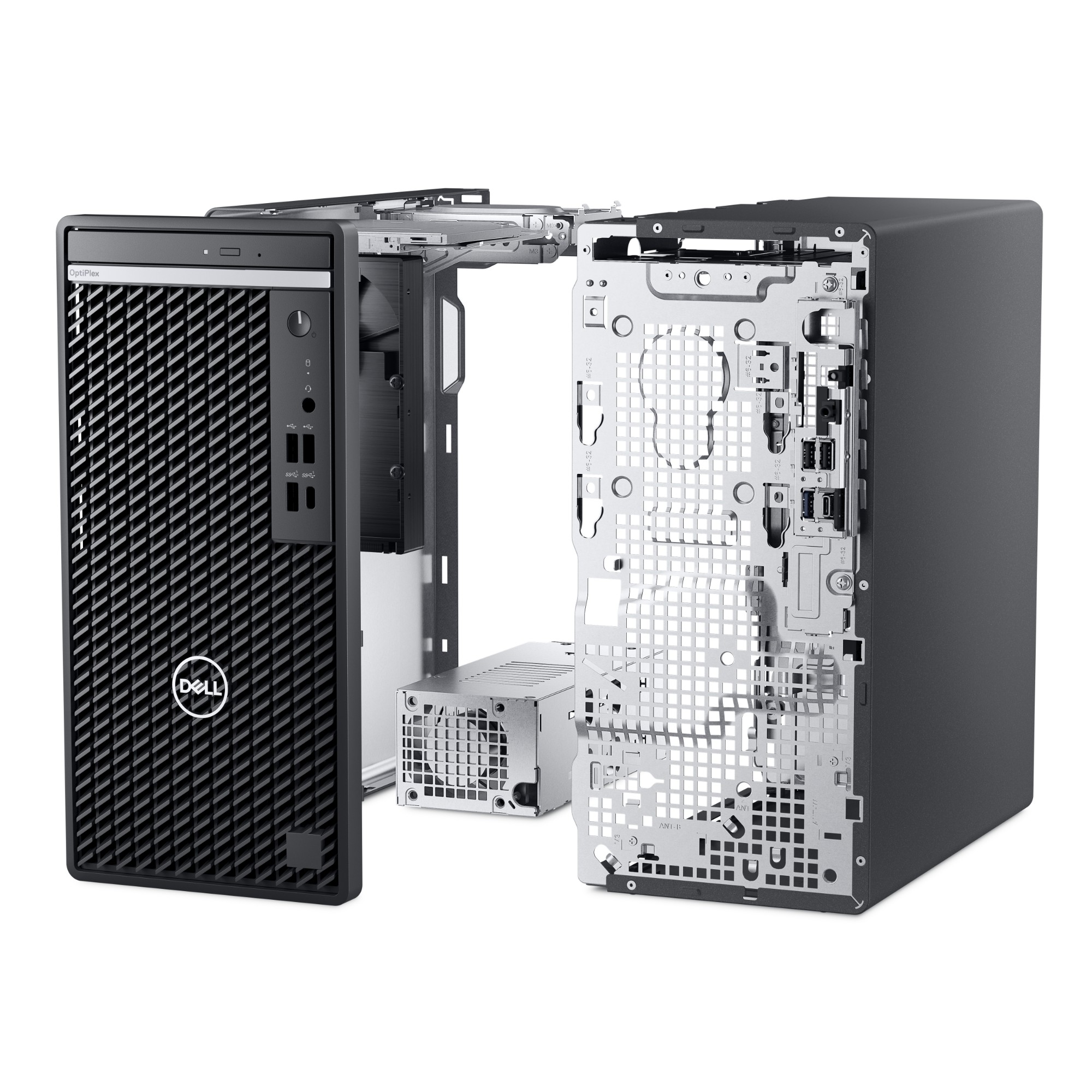

DELL OptiPlex 7020 Intel® Core i5 i5-14500 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini Tower PC Black
SKU:6DT3D
Commercial desktop with DDR5 memory, 8 native USBs including 1 USB-C, 1 native DisplayPort, and 1 native HDMI.
-
Specification
Processor Processor generation Intel® Core i5 (14th gen) Processor cache type Smart Cache Processor cache 24 MB Processor model i5-14500 Number of processors installed 1 Processor manufacturer Intel Processor boost frequency 5 GHz Processor threads 20 Processor cores 14 Processor family Intel® Core i5 Number of processors supported 1 Performance cores 6 Efficient cores 8 Performance-core base frequency 2.6 GHz Efficient-core base frequency 1.9 GHz Processor base power 65 W Maximum turbo power 154 W Efficient-core Max Turbo Frequency 3.7 GHz Performance-core Max Turbo Frequency 5 GHz Memory Memory layout (slots x size) 1 x 8 GB Internal memory 8 GB Maximum internal memory 64 GB Memory slots 2x DIMM Internal memory type DDR5-SDRAM Memory channels Single-channel Memory data transfer rate 4800 MT/s Storage Storage media SSD Number of storage drives installed 1 RAID support No Optical drive type DVDRW SSD interface PCI Express SSD capacity 512 GB Number of SSDs installed 1 Compatible memory cards Not supported Total storage capacity 512 GB SSD form factor M.2 Total SSDs capacity 512 GB SSD performance class 35 NVMe Yes Graphics Discrete graphics card No On-board graphics card family Intel® UHD Graphics On-board graphics card Yes Discrete graphics card model Not available On-board graphics card model Intel UHD Graphics 770 On-board GPU manufacturer Intel Maximum on-board graphics card resolution 7680 x 4320 pixels Optical drive Optical drive type DVDRW Network Ethernet LAN Yes Wi-Fi No Bluetooth No Ethernet LAN data rates 10,100,1000 Mbit/s LAN controller Intel® I219-LM Ports & interfaces Combo headphone/mic port Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0 Thunderbolt 3 ports quantity 0 HDMI version 1.4b USB 2.0 ports quantity 4 HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 DisplayPorts quantity 1 DisplayPort version 1.4a Number of rear USB ports 4 Number of rear audio ports 0 Number of front USB ports 4 Number of front audio ports 1 Technical details Water cooling system No Cable lock slot type Kensington Product type PC Trusted Platform Module (TPM) Yes Product colour Black Chassis type Mini Tower Placement supported Horizontal/Vertical Cable lock slot Yes Motherboard chipset Intel Q670 Sustainability compliance Yes Sustainability certificates ENERGY STAR, EPEAT Climate +, TCO Design Water cooling system No Cable lock slot type Kensington Product colour Black Chassis type Mini Tower Placement supported Horizontal/Vertical Cable lock slot Yes Performance Audio chip Realtek ALC3204-CG Market positioning Business Number of speakers 1 Password protection Yes Product type PC Trusted Platform Module (TPM) Yes Built-in speaker(s) Yes Motherboard chipset Intel Q670 Trusted Platform Module (TPM) version 2.0 Software Operating system language German, Dutch, English, French, Italian Operating system architecture 64-bit Trial software Activate Your Microsoft 365 For A 30 Day Trial Operating system installed Windows 11 Pro Power 80 PLUS certification 80 PLUS Bronze Power supply input frequency 47/63 Hz Power supply input voltage 90 - 264 V Power supply 180 W Operational conditions Operating altitude -15.2 - 3048 m Storage temperature (T-T) -40 - 65 °C Operating relative humidity (H-H) 20 - 80% Storage relative humidity (H-H) 5 - 95% Operating temperature (T-T) 10 - 35 °C Non-operating altitude -15.2 - 10668 m Operating vibration 0.26 G Non-operating vibration 1.37 G Operating shock 40 G Non-operating shock 105 G Sustainability Sustainability compliance Yes Sustainability certificates ENERGY STAR, EPEAT Climate +, TCO Total carbon footprint (kg of CO2e) 158 Weight & dimensions Width 154 mm Depth 292.2 mm Height 324.3 mm Packaging content Cables included AC Display included No Mouse included on selected markets Dell Optical Mouse-MS116 - Black Keyboard included on selected markets Dell Multimedia Keyboard-KB216 - UK (QWERTY) - Black Carbon footprint Total carbon footprint (kg of CO2e) 158 Total carbon emissions, w/o use phase (kg of CO2e) 110 PAIA version GaBi version 1, 2024 Carbon emissions, energy usage (kg of CO2e) 48 Carbon emissions, manufacturing (kg of CO2e) 94 Carbon emissions, logistics (kg of CO2e) 10 Carbon emissions, end-of-life (kg of CO2e) 6 Other features Number of speakers 1 Trusted Platform Module (TPM) Yes On-board graphics card Yes Processor manufacturer Intel Built-in speaker(s) Yes
